Description

Bubble Mattress & Pump Anti-Decubitus System- QDC-303

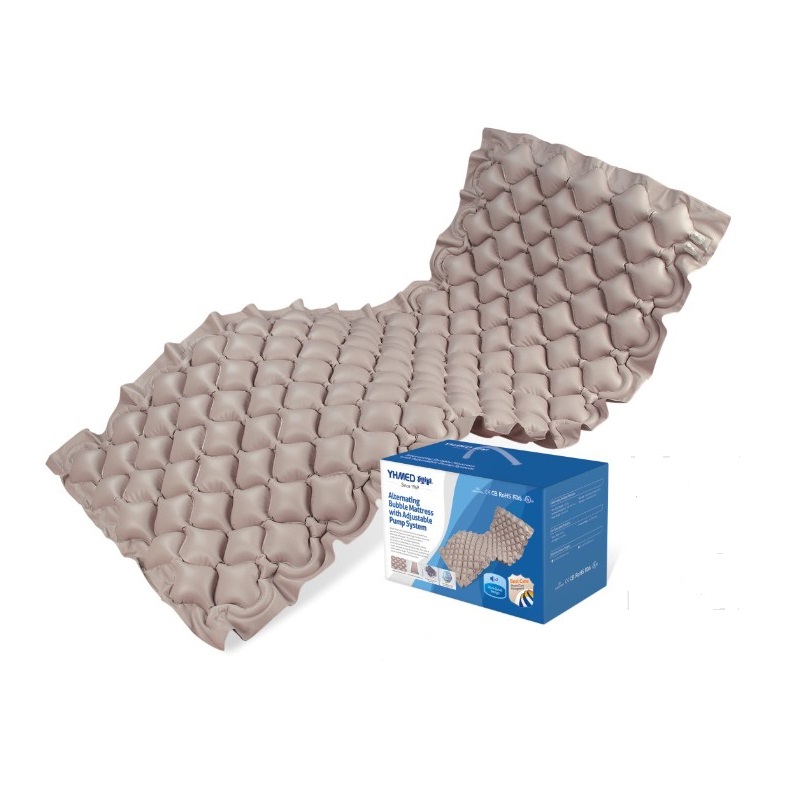

QDC-303 Economical Pressure Relief Bubble Pad System

QDC-303 is designed for the treatment and prevention of pressure sore stage I in long-term and domiciliary therapies. The mattress in PVC is composed of 130 7cm-high bubble cells, particularly comfortable, it is fixed to the bed by extra flaps on both top and bottom side. Very easy to install, maintain and use thanks to the possibility of adjust comfort range. The pump can be hung to the end of the bed by means of two hooks.

Specifications:

★ Technical Parameters of The Mattress

1. Dimensions without flaps (L×W×H): 200×90×7cm

2. Flaps length: 50 cm + 50 cm (Top & Bottom Side)

3. Cell height: 7 cm/2.7″

4. Mattress material: EN71 MEDICAL GRADE PVC

5. Mattress thickness: 0.35mm

6. Cold-resistant: -30 Degrees

7. Number of cells: 130

8. Weight support: 100 kg

9. Mattress Forming Model: One-Time Forming (8s)

10.Test Duration: 24 Hours (Inflation)

★Technical Parameters of The Pump

The Best Pump In China

1. Electrical: AC110V/220V 50Hz/60Hz

2. Pressure range: 50-105mmHg

3. Air output: 4-6 liter/min

4. Cycle time: 6 min

5. Dimesions(L×W×H): 25×13×9.5cm

6. Plastic Casing: Taiwan Chimei ABS

7. Test Duration: 24 Hours

8. TUV-CE IEC/EN60601-1 & 60601-1-2
