Description
Class II A2 Biosafety Cabinet Features:
- UV sterilization function and timing function can be set by appointment.
Motorized front window, control limit and travel limit double protection, ergonomic 10° tilt Angle, improve the operation comfort.
- With memory function in case of power-failure.
- Work area surrounded by negative pressure, prevent leakage,improve Biosafety.
- Audio and visual alarm (Abnormal airflow velocity, HEPA filter failure, UV lamp failure, Front window at unsafe height).
- Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; blower and front window.
- Standard with foot switch: adjust front window to up and down, to avoid airflow turbulence caused by arm movement.
- Color Rendering Index up to Ra98, Truly restore the true color of the experimental object, the experimental results are more accurate.
- RG0 without blue light, protects the operator from blue light.
- Optional upgraded LED lamp.
Class II A2 BSC Specifications:

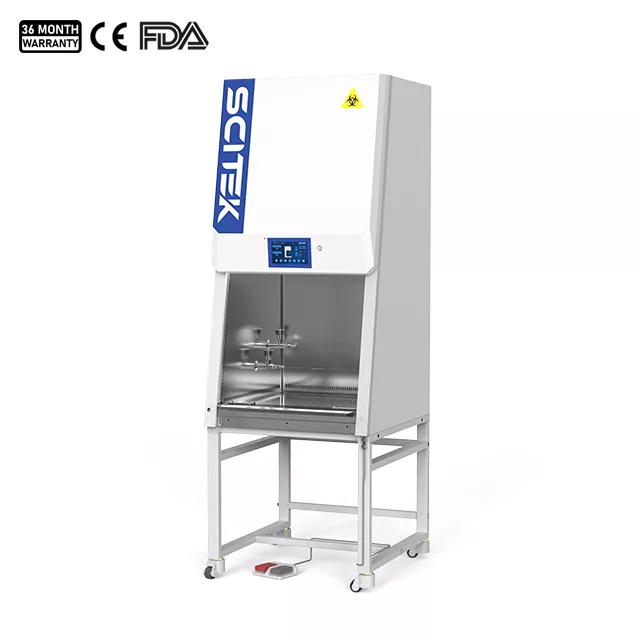

| Model | BSC-IIA2-2F | |
|---|---|---|
| Internal Size (W×D×H)(mm) | 610×550×600 | |
| External Size (W×D×H)(mm) | 710x760x1430 (Without base stand), 710x760x2050 (With base stand) | |
| Max.Opening | 370mm | |
| Work Surface Height | 750mm | |
| Control System | Display | 7”LCD touch screen |
| Airflow System | Alarm | Abnormal airflow velocity, HEPA filter failure, UV lamp failure, Front window at unsafe height |
| Airflow Mode | 70% air recirculation, 30% air exhaust | |
| Downflow Velocity | 0.35m/s±0.025m/s | |
| Inflow Velocity | 0.52 m/s±0.025m/s | |
| Inflow Air Volume | 240m³/h (141CFM) | |
| Downflow Air Volume | 560m³/h (330CFM) | |
| Exhaust Air Volume | 240m³/h (141CFM) | |
| Air filtration System | HEPA Filter | 2pcs H14 HEPA filter, ≥99.995% efficiency at 0.3μm |
| Cleanliness Grade | Class 100 (ISO14644.1 Class 5) | |
| Cabinet Construction | Main Body | Electro-galvanized steel with antimicrobial Powder Coating |
| Work Surface | 304 stainless steel | |
| Front Window | Motorized, toughened glass | |
| Electrical System | UV Lamp | 15W×1 (Emission of 253.7 nanometers for most efficient decontamination, UV life indicator, UV timer) |
| LED Lamp | 10W×2 | |
| Max.Consumption | 350W (Not include socket consumption) | |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |
| Illumination | ≥900Lux | |
| Sound Emission | ≤65dB(A) | |
| Vibration of Work Surface | ≤2μm | |
| Standard Accessory | 1. Air Velocity Sensor;
2. LCD Touch Screen; 3. LED Lamp×2; 4. UV Lamp×1; 5. Explosion-Proof/Waterprof Socket×1; 6. Motorized Front Window; 7. Footmaster Caster; 8. Foot Switch; 9. Removable shallow-plate stainless steel work surface; |
|
| Optional Accessory | 1. Base Stand;
2. Gas tap; 3. Water tap; 4. Pressure Sensor; 5. IV Bar With Hooks; 6. ULPA filter; 7. Upgraded LED Lamp; |
|
| Net Weight | 130kg (Without base stand), 140kg (With base stand) | |
| Gross Weight | 165kg (Without base stand), 175kg (With base stand) | |
| Shipping Size (W×D×H)(mm) | 850×990×1640 | |
| Shipping Volume | 1.4 m³ | |
Environment conditions:
- Temperature range: 5∽40℃
- Relative humidity: ≤90%(At +40℃)
- Atmospheric pressure: 86kPa-106kPa
- Maximum dust concentration: 3500 particles /L(particle size ≥0.5μm)
Optional upgrade LED lamp can be choosed.
- Color Rendering Index up to Ra98, Truly restore the true color of the experimental object, the experimental results are more accurate.
- RG0 without blue light, protects the operator from blue light.
Class II A2 Biosafety Cabinet Details Show:
7” LCD Touch Screen (Real-time monitoring and display Front window status/Airvelocity/Date/Time/Temperaturel-Filter and UV lamp life/System working status etc.)
Air Velocity sensor (Real-time monitoring and display air velocity and precise control.)
Removable work zone, 304 Stainless steel. (Easy to pull out, convenient for cleaning and disinfection.)
Foot Switch (Standard)
Waterproof Socket (IP54)
Base stand (Optional)
Gas Tap (Optional)
Water Tap (Optional)
IV Bar with hooks (Optional)
Optional upgrade LED lamp
Details of Class II Cabinet:
This BSC Class II Type A2 has a front protective screen and transparent window design, and is equipped with multiple safety indicators and alarm devices to monitor the operating status of the equipment in real time to ensure the safety of use.
The Class II type A2 biological safety cabinet’s compact construction saves laboratory space and is suitable for placement in tight working environments.

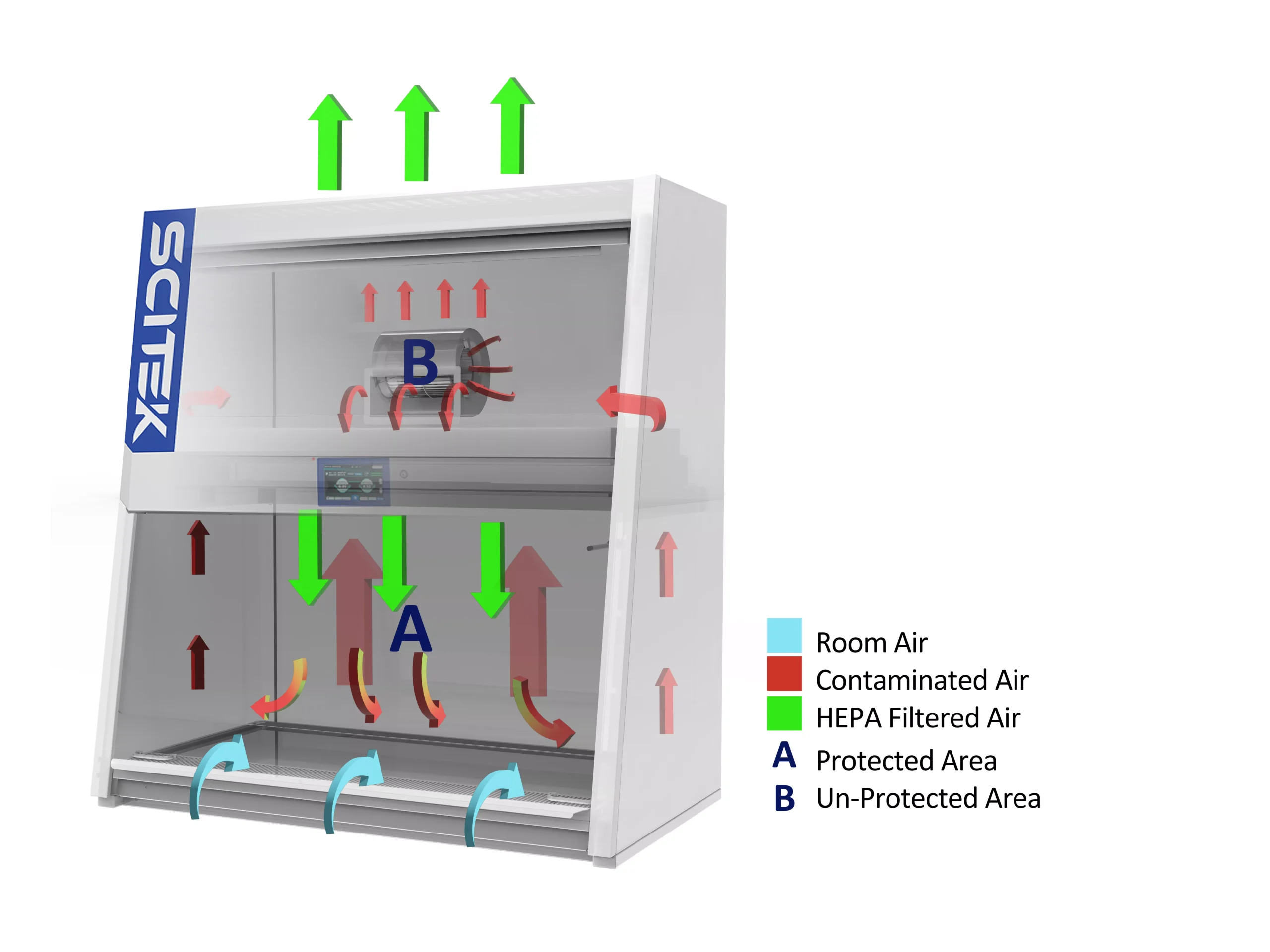

This class ii cabinet ensures efficient circulation and filtration of internal air, providing a clean working environment. The interior is equipped with a HEPA filter, which effectively filters microorganisms and particles in the air to ensure the cleanliness of the operating environment.
Real-time monitoring and display front window status/Velocity/Pressure, Date/Time/Temperature/filter and UV lamp life/System working status etc.
The interior of the package is designed with a shockproof structure to reduce the impact of vibration on the A2 biosafety cabinet during transport and ensure the safe arrival of the equipment.
Clear marking and labelling for easy identification and handling.
Accessories include power cord, Air velocity sensor, Foot switch, LED lamp, and instructions.
